Intelect® SWD100 Shortwave Diathermy - Deep Tissue Heating Therapy

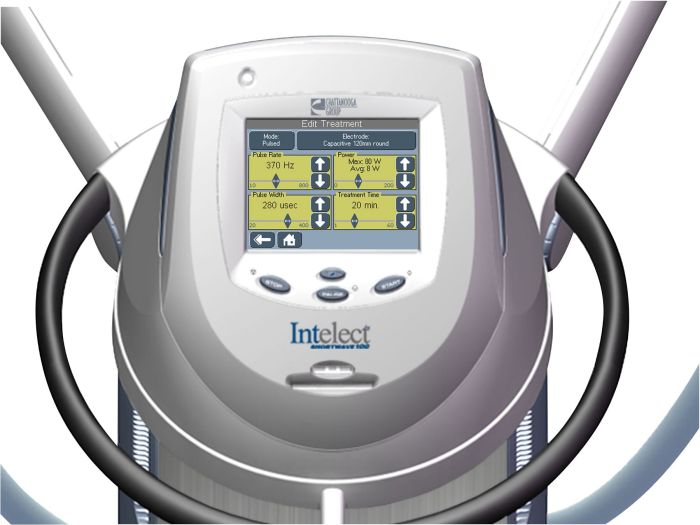

Intelect® SWD100 Shortwave Diathermy

The Intelect SWD100 is a state-of-the art rehabilitation device that is intuitivelty easy to use.  Featuring a full-color touch screen interface, User-Defined Protocol storage slots, Clinical Educational Resources and more provides you with a shortwave diathermy device unlike any other!

Features:

• Clinical Educational Resources including:

                  o   Full-color graphics library of anatomical images and pathologies
                  o   Applicator placement images
                  o   Diathermy rationale and contraindications

• Adjustable treatment timer
• Automatic resonance tuning
• Two output channels
• 360° swivel rotation of touch-screen interface
• Robust, multi-jointed pivoting electrode arm
• Patient safety switch
• 200 user-defined protocol storage slots
• Patient documentation of treatment sessions including pre and post treatment patient pain scales, pain mapping, and pain types all captured on Patient Data Cards
• Two-year warranty

Technical Specifications:

• Power: 100-240VAC, 50-60Hz
• Output Frequency: 27.12 MHz
• Output Power: 100W Continuous Mode, 200W Peak in Pulsed Mode
• Weight: 60 lbs
• Dimensions (W x D x H): 24” x 12” x 45.5”
• Pulse Width: 20-400 µs
• Pulse Rate: 10-800 Hz
• Treatment Time: 1 – 60 minutes
